TL;DR Adopting an Infrastructure As A Service (IaaS) provider can save huge time and effort when implementing a B2B SaaS product, but it can also result in deep lock-in with the provider. I explain how deploying a SAML Proxy can mitigate this, and provide a case study of migrating hundreds of customers from one IaaS provider to a competitor instantly and with near zero disruption. I also introduce my new open source SAML Proxy, a fully functional demo that you can try out yourself and modify for your own custom scenarios.
How Does IaaS Lock-in Happen?
Any successful B2B SaaS product has to offer “enterprise SSO” - which usually means SAML authentication - to its customers. Unfortunately knowledge of SAML authentication protocols is somewhat specialist, and the risks of a poorly implemented SAML Service Provider (SP) compromising your security are high. Add to that the cost of a custom implementation and it rapidly becomes obvious that using a 3rd party authentication service makes sense. These often include identity management and role based access control, and make a compelling time saver for a new business.
Identity as a Service (IaaS) has unsurprisingly emerged as a very popular SaaS category with a number of competing providers. A list off the top of my head would include Okta (and Auth0), AWS Cognito, WorkOS, and Clerk.
There is a danger of course with adopting an IaaS, that it inevitably means deep coupling (lock-in) with the IaaS vendor, making it technically difficult to switch to a different provider. This has multiple dimensions, especially if you adopt them for full identity/role management, but for this blog post I want to focus on just one aspect, enterprise SSO using the SAML protocol.
A SAML SSO connection has two parties: the Service Provider (SP), and the Identity Provider (IdP). The SP is your application that trusts an IdP to authenticate users on its behalf, but if you’ve delegated authentication to a 3rd party IaaS, your SP will be hosted by them. The IdP can be your customer’s in-house implementation, but more commonly it will be provided on their behalf by a 3rd party like Okta, Google, or Microsoft. The lock-in happens because A SAML connection between an SP and an IdP is configured at both ends, so if you want to change the IdP or SP, both ends of the connection will need to be reconfigured, but you, as the SP, have no control over the IdP configuration.
block-beta
columns 6
%% Headers
h1["Service<br/>Provider"]:2
space:2
h2["Identity<br/>Provider"]:2
style h1 fill:none,stroke:none
style h2 fill:none,stroke:none
%% Service Provider
block:a
columns 2
a1["SP"]:2
a2["ACS URL"]:2
end
space:2
%% IdP
block:b
columns 2
b1["SSO URL"]:2
b2{"IdP"]:2
end
style a stroke:black,fill:#AAE
style b stroke:black,fill:#AEA
a1--"AuthnReq"-->b1
b2--"Assertion"-->a2
At a minimum the service provider (or IaaS) will need to be configured with:
| IdP SSO URL | This is the endpoint at the IdP that receives the AuthnRequest (request for authentication). These paths are vendor specific and often include a unique string for each connection |
| IdP Entity Id | This is a unique identifier for the IdP. Most IdPs will specify a unique Entity Id for each SP connection |
| IdP X509 Certificate | This is the IdP’s public encryption key that the SP will use to validate the assertion’s X509 signature. IdPs will usually provide a unique certificate for each SP connection |
This configuration will typically be exported from the IdP as an XML document called “Metadata XML”. Often it’s given as a public URL that most IaaS providers will accept in their management console.
The Identity Provider’s minimal configuration for each SP that it provides authentication for is:
| SP ACS URL | This is the SP’s Assertion Consumer Service, the endpoint that receives the SAML Assertion from the IdP. Most IaaS services will provide a unique URL for each IdP connection |
| SP Entity Id | This is a unique identifier for the SP and will often be unique per connection. |
I’ve worked with three separate IaaS services: AWS Cognito, Auth0, and Clerk. All provide a management API that allows one to query their service provider configuration, so in theory, if one were to migrate from one IaaS to another, one could simply extract the configuration from, say, Cognito, and apply it to, for example, Clerk. The problem is that your new SP (IaaS) will have a different ACS URL and a different Entity Id since these are vendor specific. So even if one could make a request for authentication to an IdP, it would at minimum be rejected because of an unmatched Entity Id, or, even if that wasn’t an issue, the SAML Assertion would be sent to the wrong ACS URL.
This is the core issue with any migration: One has no alternative but to contact each customer in turn and request that they reconfigure their IdP to point to your new IaaS provider. For a company with hundreds, or even thousands of customers, each with their own IdP configuration, this is a huge ask.
How a SAML Proxy Can Help
A SAML IdP Proxy is a stand-alone service that sits between an SP and an IdP. It can route, modify, log, and enhance SAML interactions, but most importantly for our discussion it decouples the SP from the IdP and allows seamless migration between different SPs and IdPs without needing to reconfigure the peer.
The SAML Proxy acts as an IdP to your SP, and an SP to your IdP, and provides a mapping between them. See the diagram below:
block-beta
columns 6
%% Headers
h1["Service<br/>Provider"]
space
h2["Proxy"]:2
space
h3["Identity<br/>Provider"]
style h1 fill:none,stroke:none
style h2 fill:none,stroke:none
style h3 fill:none,stroke:none
%% Service Provider
block:a
columns 1
a1["SP"]
a2["ACS"]
end
space:1
%% Proxy
block:b:2
columns 2
b1["SSO"]
b2["SP"]
b3["IdP"]
b4["ACS"]
end
space:1
%% IdP
block:c
columns 1
c1["SSO"]
c2{"IdP"]
end
style a stroke:black,fill:#AAE
style b stroke:black,fill:#AEA
style c stroke:black,fill:#EAA
space:6
space:2
db[("Connection<br/>Mapping")]:2
space:2
a1--"AuthnReq"-->b1
b2--"AuthnReq"-->c1
c2--"Assertion"-->b4
b3--"Assertion"-->a2
b-->db
Because you have full control over the SAML Proxy’s configuration you can freely reconnect SPs to IdPs and IdPs to SPs, or even multiplex single SPs to multiple IdPs using whatever attributes you want (and vice-versa of course). Ideally you would implement a SAML Proxy when adopting an IaaS solution, but failing that it is possible to retroactively insert one between your SP/IaaS and your customers IdPs, the case study below explains how.
Case Study
I was part of a team which migrated several hundred customers away from Auth0 and Cognito using this method. The company was a B2B start-up that had been growing for several years as a monolithic single application. They had several hundred customers configured with SAML connections via AWS Cognito and Auth0. Cognito had been the original choice since the company was wholly based on AWS infrastructure, but a missing feature in Cognito had led to Auth0 integration being used for around 80 customers.
Two main factors forced a review of how authentication was implemented:
- The company was moving to a distributed application model with several applications that needed seamless authentication between them. Refactoring the monolith’s authentication logic and UI was seen as impractical when there are so many IaaS solutions that provide the same functionality out-of-the-box.
- Auth0 was proving to be very expensive.
After considering a number of competing options it was decided to adopt Clerk as the IaaS for all current and future applications. One compelling feature was Clerk’s provision of React authentication UI components that could simply be dropped into new applications as needed.
It was at this point that the question of how to migrate the company’s SAML customers to Clerk arose. Somebody suggested using a SAML Proxy, but after some investigation we were surprised to find that there were no open-source or commercial options available. I volunteered to build one based around the excellent Samlify library.
I was able to extract the SP configuration from Cognito and Auth0 using their
management APIs, and because I was building the Proxy, it was simple to provide
endpoints that mimicked their ACS endpoints. We had configured both our Cognito
and Auth0 tenants with custom company sub domains; something like
auth.acme.com, so all we needed was a DNS reconfiguration to point all our
customers at once to our proxy rather than Cognito and Auth0. Since we were
adopting Clerk as a new service it was simple to configure it from scratch to
point to our SAML Proxy. Each customer had a unique connection in Clerk which
pointed to a unique connection in the proxy which then mapped to the customer’s
IdP. Simple!
Of course it wasn’t that simple. There was much to learn during the process. One of the biggest difficulties was our inability to do much realistic testing before the DNS switch. Ultimately it was successful though; we migrated several hundred SAML customers to Clerk in two batches, one each for Cognito and Auth0.
Introducing SAML Proxy
The SAML proxy I built for the company in the case study was their proprietary code, but since then I’ve built a generic open source SAML Proxy with an entirely new codebase.

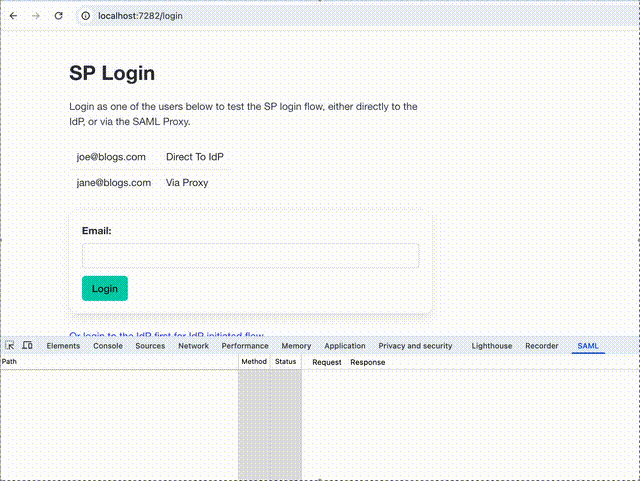

Here is it in action:
The GitHub repository for the proxy, called, imaginatively “SAML Proxy” is at https://github.com/mikehadlow/samlproxy. There are full instructions on how to clone it and run it. It also includes a demo SP and IdP, which could serve as a starting point, especially if you want to add SAML authentication to your existing application, but don’t want to pay for an IaaS provider. It’s provided as a demo, so you’ll need to do some work to alter it for your own needs, but hopefully it’ll save you considerable time. It has an MIT license, so you are free to take the code and use it however you wish. I’d be very curious to hear about any actual implementations, so please let me know if you can.
Happy Proxying!
